Kabel Gland SKINTOP MS-M
| Stok | Tersedia |
| Kategori | Cable Gland |
Kabel Gland SKINTOP MS-M
Cable Gland
SKINTOP MS-M
Material : Nickel-Plated Brass
Deskripsi Produk : SKINTOP MS-M
Material : NICKEL PLATED BRASS
Ukuran/size : M 20 (20×1.5)
Packing : 50 Pc / Pack
Brand : Skintop, Germany
Berikut harga dan kondisi pengiriman KABEL GLAND SKINTOP Nickel-Plated Brass untuk ukuran lainnya:

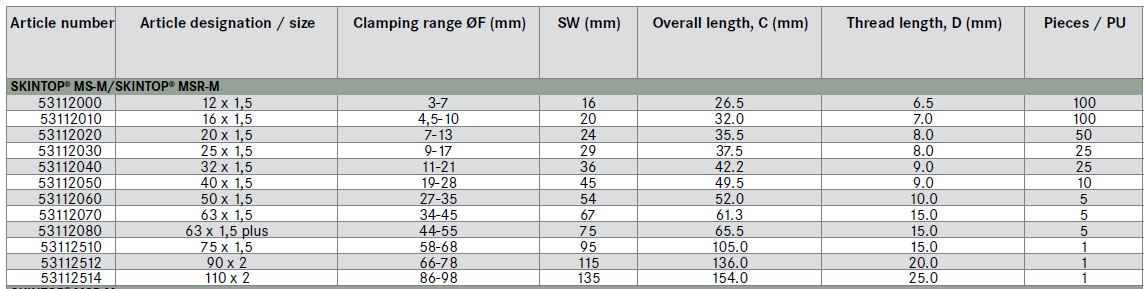

| NO. | Description | Unit Price | Qty | Total Price | Stock |
| 1 | SKINTOP MS-M 12×1,5 | 20,000 | 100 | 2,000,000 | 4 Weeks |
| 2 | SKINTOP MS-M 16×1,5 | 27,143 | 100 | 2,714,286 | 4 Weeks |
| 3 | SKINTOP MS-M 20×1,5 | 35,714 | 50 | 1,785,714 | 4 Weeks |
| 4 | SKINTOP MS-M 25×1,5 | 47,143 | 25 | 1,178,571 | 4 Weeks |
| 5 | SKINTOP MS-M 32×1,5 | 85,714 | 25 | 2,142,857 | 4 Weeks |
| 6 | SKINTOP MS-M 40×1.5 | 135,714 | 10 | 1,357,143 | 4 Weeks |
| 7 | SKINTOP MS-M 50×1,5 | 222,857 | 5 | 1,114,286 | 4 Weeks |
| 8 | SKINTOP MS-M 63×1,5 | 498,571 | 5 | 2,492,857 | 4 Weeks |
| 9 | SKINTOP MS-M 63×1,5 PLUS | 582,857 | 5 | 2,914,286 | 4 Weeks |
| 10 | SKINTOP MS-M 75×1.5 | 1,692,857 | 1 | 1,692,857 | 4 Weeks |
| 11 | SKINTOP MS-M90 | 4,215,714 | 1 | 4,215,714 | 4 Weeks |
| 12 | SKINTOP MS-M110 | 8,011,429 | 1 | 8,011,429 | 4 Weeks |
■ Benefits
SKINTOP® MS-M
▯ Maximum reliability
▯ Optimum strain relief
▯ Wide, variable clamping ranges
▯ For cable diameters up to 98 mm
SKINTOP® MSR-M
▯ For the benefits, refer to SKINTOP® MS-M
■ Application range
SKINTOP® MS-M
▯ In areas where mechanical and chemical stability are critical
▯ Chemical industry
▯ Measurement and control technology
▯ Machine and equipment manufacturing
▯ Plant engineering
SKINTOP® MSR-M
▯ With reducing seal insert, to seal cables
with smaller outer diameters.
■ Norm references / Approvals
▯ UL File Nr. E79903
■ Product make-up
▯ Metric connection thread acc. To EN 50262
■ Note
▯ Counter nut to be used: SKINDICHT®SM-M
▯ Refer to SKINTOP® metric accessories for suitable accessories
Technical data
Approvals
IP 69 K, UL, CSA, DNV and VDE approval
Material
Body: nickel-plated brass
Insert: polyamide
Sealing ring: CR
O-ring: NBR
Protection rating
IP 68
IP 69 K
Temperature range
Dynamic: -30 °C to +100 °C
Fixed: -40°C to +100°C
Tags: Jual CABLE GLAND, LAPP, NPT, PG Thread, POLYAMIDE, SKINTOP
Kabel Gland SKINTOP MS-M
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 43 kali |
| Diskusi | Belum ada komentar |
