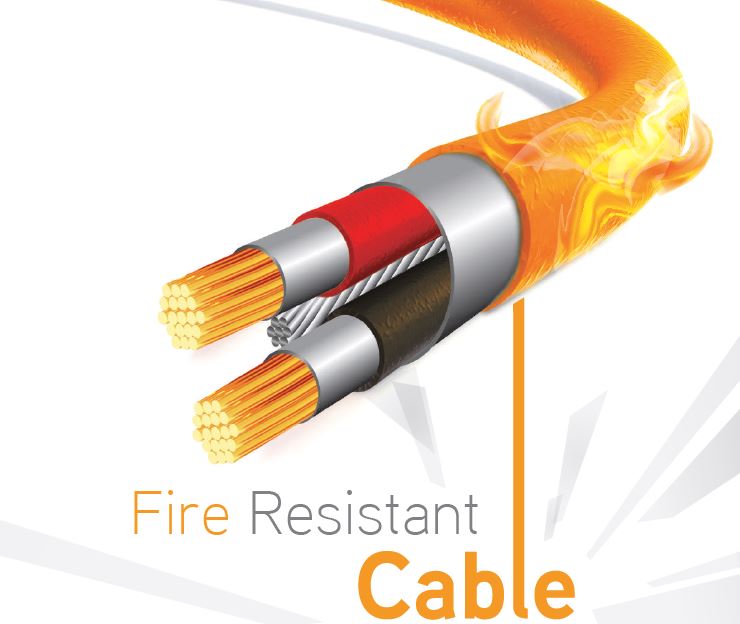

Fire Resistant Cable (FRC) – Shielded 1 Pair 1.5 MM2
| Stok | Tersedia |
| Kategori | Special Cables |
Fire Resistant Cable (FRC) – Shielded 1 Pair 1.5 MM2
Fire Resistant Cable, FRC with OverAll Shielded
Type Deskripsi Produk : FR-6387 OS
Size / Ukuran : 1x2x1.5 MM2
Brand / Merk : LAPP Kabel
APPLICATION RANGE
• Specially designed to be used for wiring applications in critical life safety system in public and industrial buildings such as airports, hotels, hospitals, subways, train stations, etc.
• In building management systems, emergency lightings, standby power supplies, lifts and elevators
• Plant engineering and construction, industrial machinery, power station
APPROVAL
• Fire test certified and approved to BS 6387 Cat. CWZ
• Approved to SS 299 PLS Class 1A
• Instrumentation cable, 300/500
PRODUCT FEATURES
• Flame retardant acc. to IEC 60332-1-2 and to IEC 60332-3-22
• Halogen free acc. to IEC 60754-1
• Acid and corrosive gases acc. to IEC 60754-2
• Smoke density test acc. to IEC 61034
APPROVALS (NORM REFERENCES)
• Fire test certified and approved to BS 6387 Cat. CWZ
• Approved to SS 299 PLS Class 1A
DESIGN
• Stranded plain annealed copper wire
• Mica based fire resistance tape
• XLPE insulation
• Mylar tape wrapping
• Aluminium/mylar tape screen in contact with drain wire
• LSHF outer sheath
• Colour: orange
Core identification code
Pair: BK/RD or BU/BN
Multipair: BK/WH with numbering
Multicore: 3C and above WH with numbering
Approvals
BS 6387 Cat. CWZ, SS 299-1 PLS Class 1A
Conductor stranding
acc. to IEC 60228 Cl. 2
Minimum bending radius
10 x cable diameter
Nominal voltage
U0/U: 300/500 V
Test voltage
2000 V, Core-Core
Temperature range
-30°C to +90°C
Fire Resistant Cable (FRC) – Shielded 1 Pair 1.5 MM2
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 64 kali |
| Diskusi | Belum ada komentar |
Profibus PA Cable Product Description : UNITRONIC® BUS PA Ukuran / Size : 1x2x1,3 MM2 Warna / Color : Blue or Black Merk / Brand : LAPP Kabel Part Number : 2170234 ■ Benefits ▯ FC (Fast Connect) version is oil and UVresistant ■ Application range ▯ Process-automation application for connecting sensors and actuators –… selengkapnya
*Harga Hubungi CS
IGUS chainflex® CF880 (CF880.15.07) 7G1,5 MM2 Cable Chain “IGUS” Control cable | PVC | chainflex® CF880 CF880.15.07 Size : 12G 1.5 MM2 Voltage : 300/500 V For flexing applications PVC outer jacket Flame-retardant
*Harga Hubungi CS
SOLAR / PHOTOVOLTAIC CABLE PV F-1 Deskripsi Produk : TUV 2PfG 1169 VOKSEL PV1-F = 0.6/1 kV Ukuran/size : 1×6 MM2 Packing : 1000 Mtr Brand : VOKSEL Harga : Rp. 18.000/MTR Estimasi harga untuk ukuran lain dari produk ini adalah : – PV F-1, 1x 2.5 MM2 : Rp 10.000 / Mtr – PV… selengkapnya
*Harga Hubungi CS

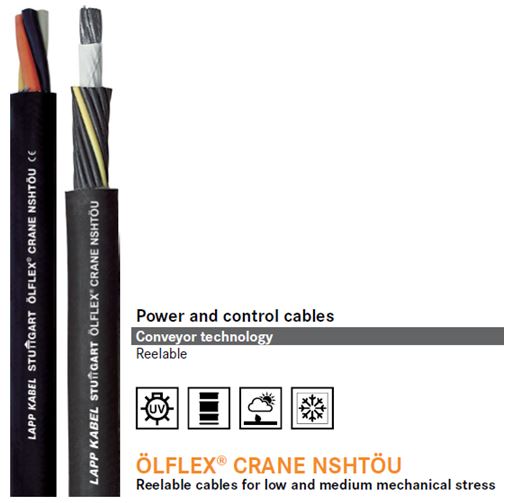

■ Benefits ▯ Can be used as hawser, drum and towing cable as well as for energy supply chains ▯ Integrated supporting braid prevents undesirable cable twists, and the formation of so-called corkscrew effects ■ Application range ▯ For use in hoists, transport and conveyor systems ▯ Reeling/unreeling during operation without fixing ▯ In dry… selengkapnya
