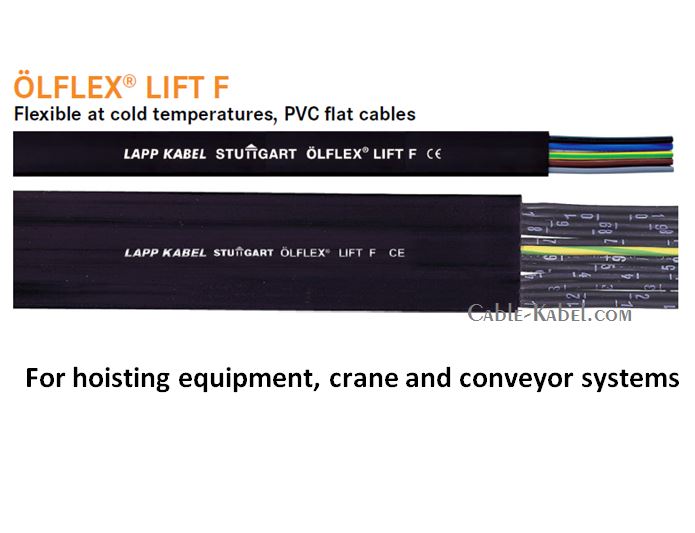

FLAT Cable PVC, 12×1,5 MM2 untuk Hoist, Crane & Conveyor
| Stok | Tersedia |
| Kategori | Special Cables |
FLAT Cable PVC, 12×1,5 MM2 untuk Hoist, Crane & Conveyor
FLAT CABLE , PVC 12×1,5 MM2
Deskripsi Produk : OLFLEX LIFT-F
Size / Ukuran : 12 core x 1.5 MM2
■ Application range
▯ For hoisting equipment and conveyor systems
▯ Indoor cranes and high-rack facilities
▯ As supply line for moving machine parts
▯ According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length, and a maximum speed of travel at 1.6 m/s
■ Product features
▯ Flame-retardant according IEC 60332-1-2
■ Norm references / Approvals
▯ Based on EN 50214/ VDE 0283-2 (H05VVH6-F or H07VVH6-F)
▯ Meets the requirements of the harmonised PVC flat cable H07VVH6-F
■ Product make-up
▯ Strands of bare copper wires
▯ Core insulation: Based on PVC
▯ PVC-based outer sheath
Classification
ETIM 5.0 Class-ID: EC000825
ETIM 5.0 Class-Description: Flat cable
Core identification code
Up to 5 cores: colour-coded according to VDE 0293-308,
From 6 cores: black with white numbers
Specific insulation resistance
> 20 GOhm x cm
Conductor stranding
U0/U 300/500 V versions, fine wire according to VDE 0295 Class 5 or IEC 60228 Cl. 5
U0/U 450/750 V versions, extra-fine wire according to VDE 0295 Class 6 or IEC 60228 Cl. 6 (from nominal conductor cross section 10 mm²: finely stranded/ class 5)
Minimum bending radius
Flexible use: 10 x cable thickness
Nominal voltage
Up to 1.0 mm²: U0/U: 300/500 V
From 1.5 mm²: U0/U: 450/750 V
Test voltage
3000 V
Protective conductor
G = with GN-YE protective conductor
X = without protective conductor
Temperature range
Flexible use:
0 °C to +70 °C (up to 1.0 mm²)
-15 °C to +70 °C (as from 1.5 mm²)
Tags: Flat Cable, LIFT-F
FLAT Cable PVC, 12×1,5 MM2 untuk Hoist, Crane & Conveyor
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 25 kali |
| Diskusi | Belum ada komentar |
