H07V-K 1×1.5 MM2 LAPP Kabel
| Stok | Tersedia |
| Kategori | Control Cables |
H07V-K 1×1.5 MM2 LAPP Kabel
Flexible Single Cores Cable
Type / Deskripsi : H07V-K
Size / Ukuran : 1×1.5 MM2
Merk / Brand : LAPP Kabel
Packing @ 100 Mtr / Box
Application range
▯ Laying in tubes, exposed or buried in plaster,
and in closed installation ducts
▯ For direct laying on racks, troughs and
tubes only as potential equalisation conductor
■ Product make-up
▯ Fine-wired copper conductor of bare copper
strands in line with conductor class 5
acc. IEC 60228
▯ Core insulation: Based on PVC
Classification
ETIM 5.0 Class-ID: EC000993
ETIM 5.0 Class-Description: Single core
cable
Conductor stranding
Fine-wired copper conductor of bare
copper strands in line with conductor
class 5 acc. IEC 60228
Minimum bending radius
At a cable temperature of 20°C ±10°C,
according to HD 516
OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤
12 mm: 5 x OD*/3 x OD**; OD > 12 mm:
6 x OD*/4 x OD**
Nominal voltage
U0/U: 450/750 V
Test voltage
2500 V
Current rating
VDE 0298 Part 4
HD 516/VDE 0298-300
Temperature range
Fixed installation:
-30°C to +80°C
Moved: +5°C to +70°C
Warna tersedia : Black, Blue, Red, Yellow, White, Green-Yellow
Mohon konfirmasi warna yang di inginkan pada saat akan order.
H07V-K 1×1.5 MM2 LAPP Kabel
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 50 kali |
| Diskusi | Belum ada komentar |
NYYHY Cu/PVC/PVC 450/750 V Flexible Copper Conductor, PVC Insulated, PVC Sheated Ukuran / Size : 2 x 4 MM2 Merk : JEMBO Packing ; 1 Roll @ 100MTR
*Harga Hubungi CS
OLFLEX CLASSIC 110 CY Screened PVC control cable with transparent outer sheath Deskripsi Produk : OLFLEX CLASSIC 110 CY Ukuran / Size : 12G1.5 MM2 ■ Benefits ▯ Space-saving installation due to small cable diameters ▯ High electrical performance due to 4 kV test voltage ■ Application… selengkapnya
*Harga Hubungi CSOLFLEX CLASSIC 110 CY Screened PVC control cable with transparent outer sheath Deskripsi Produk : OLFLEX CLASSIC 110 CY Ukuran / Size : 12G 2.5 MM2 ■ Benefits ▯ Space-saving installation due to small cable diameters ▯ High electrical performance due to 4 kV test voltage ■… selengkapnya
*Harga Hubungi CS

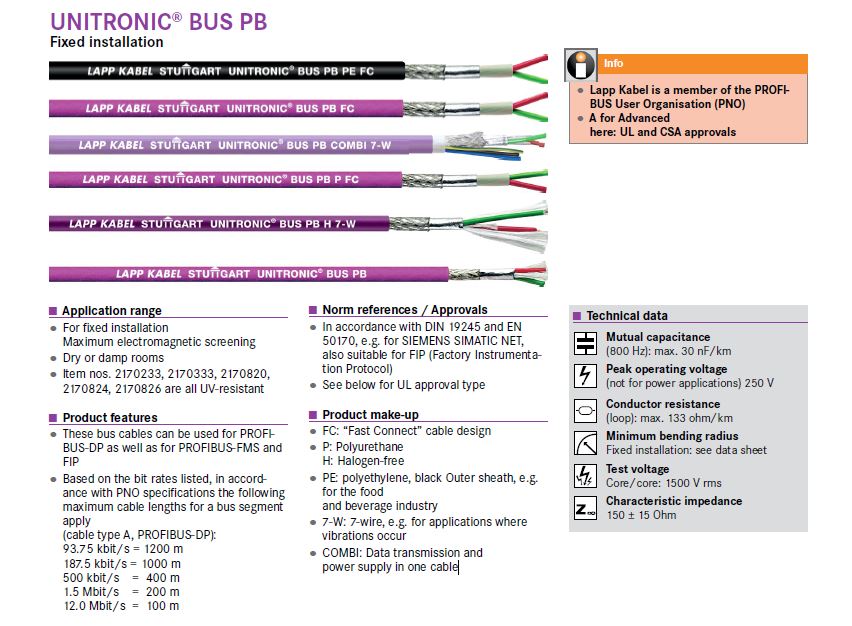

Kabel Profibus DP FIP 1x2x0.64 Cable Description ; Unitronic BUS PB FC Brands : LAPP Kabel Part Number : 2170820 PROFIBUS L2 / DP 1x2x0.64 mm2 For PROFIBUS DP as well as for PROFIBUS-FMS and FIP (Factory Instrumentation Protocol) Cables for bus systems PROFIBUS-DP/FMS/FIP ■ Application range ▯ For fixed installation Maximum electromagnetic screening ▯… selengkapnya
