Kabel Gland SKINTOP MS-M, ATEX

Cable Gland, EXPLOSION PROOF

SKINTOP MS-M, ATEX

Material : Nickel-Plated Brass

Deskripsi Produk : SKINTOP MS-M ATEX

Material : NICKEL PLATED BRASS

Ukuran/size  : M 20 (20×1.5)

Packing : 50 Pc / Pack

Brand : Skintop, Germany

Berikut harga dan kondisi pengiriman KABEL GLAND SKINTOP Nickel-Plated Brass untuk ukuran lainnya

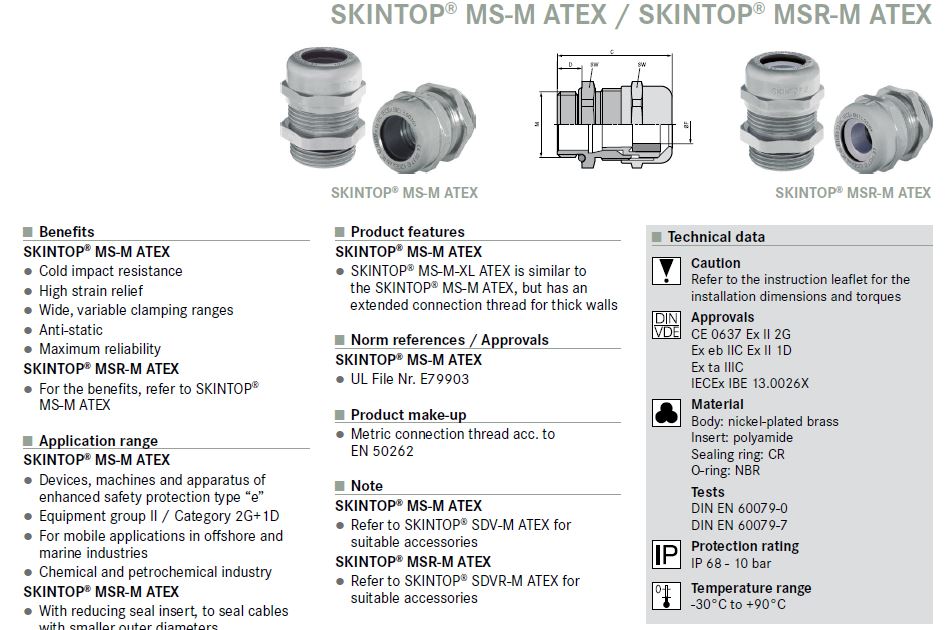

■ Benefits

SKINTOPR MS-M ATEX

▯ Cold impact resistance

▯ High strain relief

▯ Wide, variable clamping ranges

▯ Anti-static

▯ Maximum reliability

SKINTOPR MSR-M ATEX

▯ For the benefits, refer to SKINTOP®MS-M ATEX

■ Application range

SKINTOPR MS-M ATEX

▯ Devices, machines and apparatus of enhanced safety protection type “e”

▯ Equipment group II / Category 2G+1D

▯ For mobile applications in offshore and marine industries

▯ Chemical and petrochemical industry SKINTOPR MSR-M ATEX

▯ With reducing seal insert, to seal cables with smaller outer diameters.

■ Product features

SKINTOPR MS-M ATEX

▯ SKINTOP® MS-M-XL ATEX is similar to the SKINTOP® MS-M ATEX, but has an extended connection thread for thick walls

■ Norm references / Approvals

SKINTOPR MS-M ATEX

▯ UL File Nr. E79903

■ Product make-up

▯ Metric connection thread acc. To EN 50262

■ Note

SKINTOPR MS-M ATEX

▯ Refer to SKINTOP® SDV-M ATEX for suitable accessories SKINTOPR MSR-M ATEX

▯ Refer to SKINTOP® SDVR-M ATEX for suitable accessories

■ Technical data

Caution

Refer to the instruction leaflet for the

installation dimensions and torques

Approvals

CE 0637 Ex II 2G

Ex eb IIC Ex II 1D

Ex ta IIIC

IECEx IBE 13.0026X

Material

Body: nickel-plated brass

Insert: polyamide

Sealing ring: CR

O-ring: NBR

Tests

DIN EN 60079-0

DIN EN 60079-7

Protection rating

IP 68 – 10 bar

Temperature range

-30°C to +90°C
