Kabel Solar / Photovoltaic Cable, PV F-1 1x 4 MM2
| Stok | Tersedia |
| Kategori | Special Cables |
Kabel Solar / Photovoltaic Cable, PV F-1 1x 4 MM2

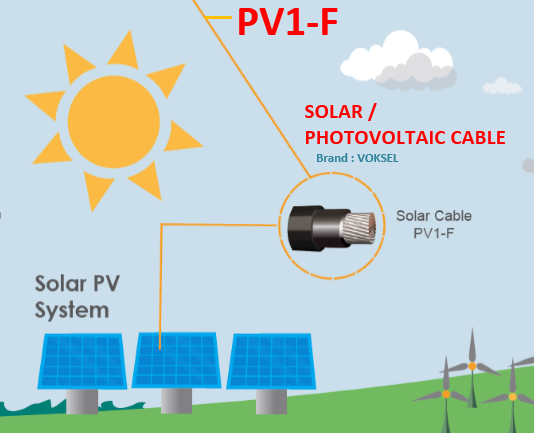

SOLAR / PHOTOVOLTAIC CABLE
PV F-1
Deskripsi Produk : TUV 2PfG 1169 VOKSEL PV1-F = 0.6/1 kV
Ukuran/size : 1×4 MM2
Packing : 1000 Mtr
Brand : VOKSEL
Harga : Rp. 13.000/MTR
Estimasi harga untuk ukuran lain dari produk ini adalah :
– PV F-1, 1x 2.5 MM2 : Rp 10.000 / Mtr
– PV F-1, 1x 6 MM2 : Rp 18.000 / Mtr
– PV F-1, 1x 10 MM2 : Rp 21.000 / Mtr
– PV F-1, 1x 16 MM2 : Rp 32.500 / Mtr
– PV F-1, 1x 25 MM2 : Rp 50.000 / Mtr
Applicable Standard
The Construction of cables shall be based on IEC 60228 & TUV-2PFG1169
Construction Details & Materials
Conductor
Flexible of annealed tinned copper wires class 5, complied with IEC 60228.
Insulation
Extruded of Black 125 oC Halogen Free Cross linked Polyolefin
The average thickness of the insulation shall be not less than nominal
value given in the attached table and the minimum thickness at any point
shall be not fall bellow 90% of the nominal value by more than 0.1 mm.
Outer Seath
Extruded of Black 125 oC Halogen Free Cross linked Polyolefin
The average thickness of the outer sheath shall be not less than
the nominal value given in the attached table and the minimum thickness
at any point shall be not fall below 80% of the nominal value
by more than 0.2 mm.
Tags: photovoltaic cable, PLTS, PV, solar, voksel
Kabel Solar / Photovoltaic Cable, PV F-1 1x 4 MM2
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 76 kali |
| Diskusi | Belum ada komentar |
