Unitronic ST 2919 PE, Cable For RS 485, RS 422 & RS 232 Interface
| Stok | Tersedia |
| Kategori | Data & Signal Cables |

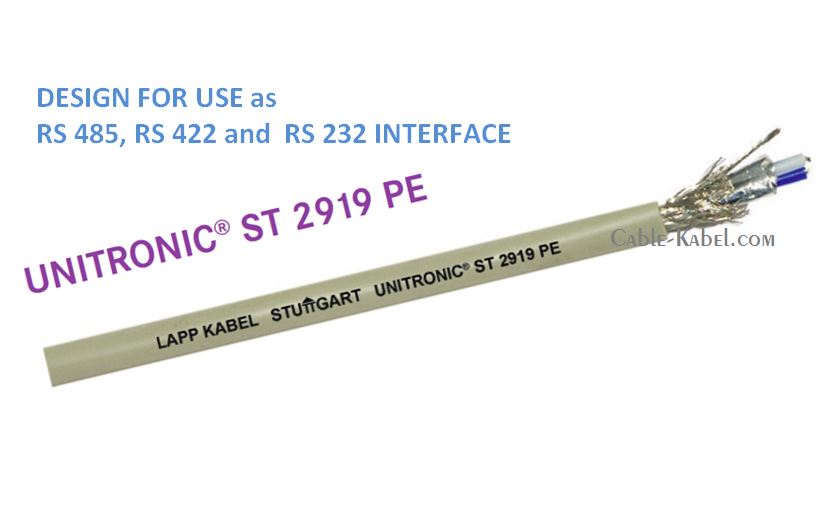

Unitronic ST 2919 PE, Cable For RS 485, RS 422 & RS 232 Interface
Deskripsi Produk :
UNITRONIC ST 2919 PE
Size : 1x2x24 AWG
Application range
? Suitable for wiring of data systems with high transmission rates
? Designed for use as Data Highway (DH) RS 232, RS 422, and RS 485 interface
? Suitable for use as control and instrumentation cables
? Suitable for flexible and static laying in dry and damp locations
Product features
? 100% screen coverage, offers optimum protection against external interference at medium and high frequencies
? Low capacitance, double screened
? Excellent shielding against internal and external interference
Design
? Multi-wire strands of tinned copper wires
? PE core insulation
? Twisted pair
? Aluminium / mylar
? Tinned copper drain wire
? Tinned-copper braiding
? PVC outer sheath
? Colour: pebble grey, RAL 7032, Colour: chrome grey, RAL 7005
Technical data
Core identification code
1 pair: wh/bu stripe + bu/wh stripe
2 pair: wh/bu stripe + bu/wh stripe
2 pair: wh/og stripe + og/wh stripe
Mutual capacitance
C/C: approx. 42 pF/m
C/S: approx. 76 pF/m
Peak operating voltage
30 V (not for power applications)
Specific insulation resistance
> 2 GOhm x km
Inductivity approx.
0.65 mH/km
Minimum bending radius
10 x cable diameter
Test voltage
1000 V
Temperature range
-30°C to +80°C
Characteristic impedance
120 ohm
Tags: RS232, RS422, RS485, Serial Cable
Unitronic ST 2919 PE, Cable For RS 485, RS 422 & RS 232 Interface
| Berat | 300 gram |
| Kondisi | Baru |
| Dilihat | 45 kali |
| Diskusi | Belum ada komentar |
